Operating system:

Embedded Linux OS

Video Compression Format:

Main Profile H.264

Video Input:

4 Channels BNC

Video Output:

1 Channel BNC ,1 Channel VGA(1280x1024)

Audio Input/Output:

4 Channel RCA Input，1 Channel RCA Output

Display Picture:

1/4

Multiplex Operation:

Live\display\Playback\Recording\Backup\Mobile phone Surveillance \Network simultaneously

Display Resolution:

PAL:D1(704x576),NTSC:D1(704x480)

Recording Mode:

Manual\Timer\Motion Detection\Alarm

Recording Frame Rate:

D1@25fps,HD1@50fps,CIF@100fps  adjustable

Recording Resolution:

PAL:D1(704x576),HD1(704x288),CIF(352x288)
NTSC:D1(704x480),HD1(704x240),CIF(352x240)

Recording Playback:

1/4 channel playback simultaneously(Optional playback channel)

Recording Backup:

USB,Moved Hard Disk,USB Writer,Network

Network transmission:

4 Channels real-time Network transmission with CIF resolution

Recording Play:

Special player, Support AVI file format conversion

JPEG capture function:

support, 3M Pixels@10fps

Alarm input/output:

4 channels input，1 channel output

Email Alarm:

Send picture to the designated email

PTZ:

Supports PTZ preset ,Cruise Control and PC client port setup

PTZ Protocol:

PELCO-D,PELCO-P

HDD:

Support 1 SATA HDD， capacity to 2TB

HDD Remain Time Hint:

Support

Network and Protocol:

1 RJ-45 10/100M via Ethernet, Support TCP/IP、PPPOE、DHCP、DNS、DDNS、NTP、UPNP

IE Browser:

Support

Client Software:

Support

CMS:

Support(One software for at most 50 DVR)，Free supply to use

Dual Stream:

Support(Main and secondary interchange)

Group play:

At least Support five users online access

Privacy Mask:

Support

S.E.Q:

Support single channel and grouping S.E.Q

Watermark:

Support

Multi-language:

Support

Mobile Phone Surveillance:

Support Windows\ Symbian\ iPhone\Blackberry Operation System

SDK Package:

Available

Mouse Interface:

USB2.0

Backup interface:

USB2.0

Remote Controller:

Support(Supports controller ID matching)

User Authority:

Support Multi-level user authority distribution

DST:

Support

Power:

DC12V/3A

Working Temperature:

0 Degree C-50 Degree C

Working Humidity:

10%－90%

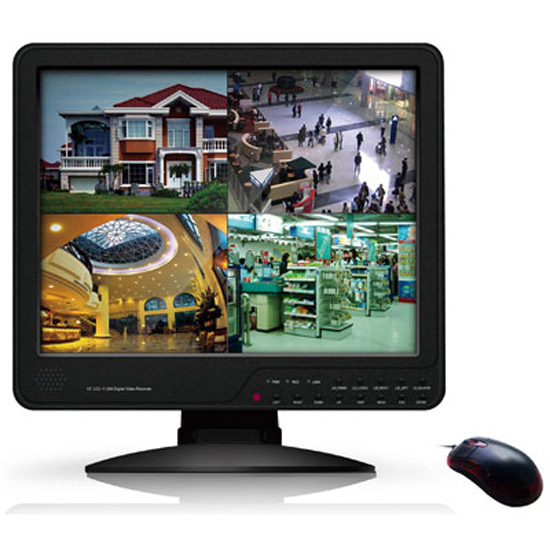

LCD Size:

15inch  4:3  CCFL  XGA
